Power without any doubts

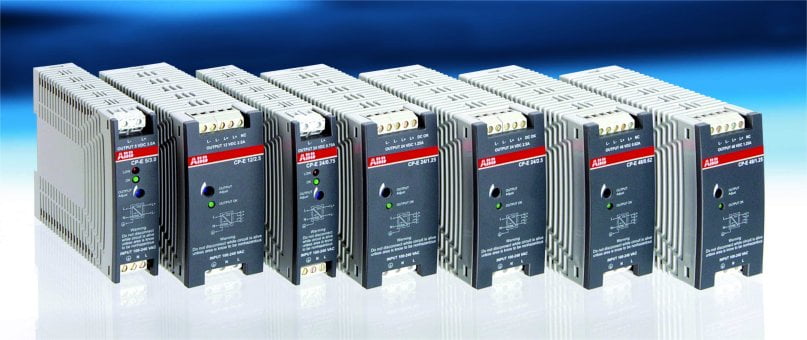

Modern power supplies are a vital component in most areas of energy management and automation technology. The new CP-E range power supplies are the youngest members of the ABB power supply family. This range offers types with output voltages from 5 V DC to 48 V DC at output currents of 0.625 A to 3 A.
A high thermal efficiency corresponding with low power and heat dissipation, allow the operation without forced cooling. Functionality has been enhanced while the number of different types has been considerably reduced.
All power supplies of the new CP-E range are approved to all relevant world-wide standards (cULUS, IEC/EN 60950, etc.) and have both CE and C-TICK marks.
Characteristics of the CP-E range
• Output voltage 5 V, 12 V, 24 V, 48 V DC
• Adjustable output voltages
• Output current 0,625 A, 0,75 A, 1,25 A, 2,5 A, 3 A
• Power range 18 W, 30 W, 60 W
• Auto range input 100...240 V AC range (85...265 V AC, 90...375 V DC)
• High efficiency of up to 87...89 %
• Low power dissipation and low heating
• Free convection cooling (no forced cooling with ventilators)
• operating temperature range –10...+70°C
• Open-circuit, overload and short-circuit stable, automatic recovery
• Integrated input fuse
• U/I characteristic curve (fold-forward behaviour at overload – no shutdown) for devices > 18 W
• Redundancy unit CP-A RU offering true redundancy
• Status LED “OUTPUT OK”
• DC OK output (transistor) for 24 V devices (> 18 W)
Enquiry Form: https://www.epreston.co.uk/contact/
Home Page: https://www.epreston.co.uk/epblog/
The 91MCE series limit switch is a compliment to Honeywell's existing product line of smaller, lower cost limit switches. Designed for modern industrial OEMs, the miniature package size fits in applications where space is limited. The small package size can be gang mounted for applications requiring more than two switch circuits. The 20mm mounting pattern meets most globally accepted mounting standards.
This product family offers the user many options including a variety of different actuator styles. Connection options include pre-leaded cable in various lengths or M12 connectors, both with side or bottom exits. Design flexibility is further enhanced with the availability of both slow action and snap action circuitry. Direct acting contacts are designed to open the NC contact when actuated. The epoxy-sealed rugged die-cast housing provides enhanced environmental durability.
FEATURES
• Direct acting contacts are designed to open NC contacts
when actuated
• Sealed to IP67; NEMA 1, 4, 12, 13 suitable for outdoor
applications
• CE, cULus, CCC approvals meet most global approvals
• Nine actuator styles offer design flexibility
• Slow-action and snap-action circuitry options
• Pre-leaded cable and M12 connector options
• Expected mechanical life: 5 million operations
• Side exit (standard) and bottom exit connection options
