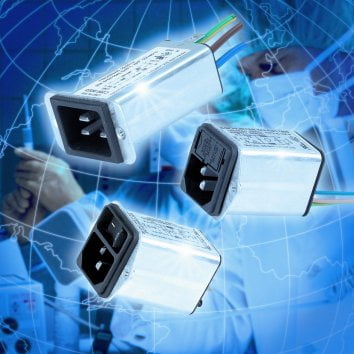

Schurter’s new metal flange versions of types C20F, DC12 and KFA simplify assuring EMC compliance within metalized enclosures. The modules are suitable for mounting from the inner side of the panel, simplifying the assembling processes. The need for additional fixing nuts has also been eliminated by an optimized construction of the filter case. The electrical subassemblies, including the power supply, can now be completely tested before they are assembled into the appliance enclosure.

As with most Schurter modules there are a wealth of optional features such as stranded wire connections, illuminated switches and medical filter versions for use in appliances with indirect contact to patients. The C20F, DC12 and KFA ranges are approved according ENEC, UL and CSA. They are designed for appliances according IEC/EN 60950 respectively to be used in medical equipment according IEC 60601-1.

The metal flange ranges are ideal for use in sophisticated power supplies particularly for medical and measuring equipment. They are equally at home in IT equipment and other industrial appliances.

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

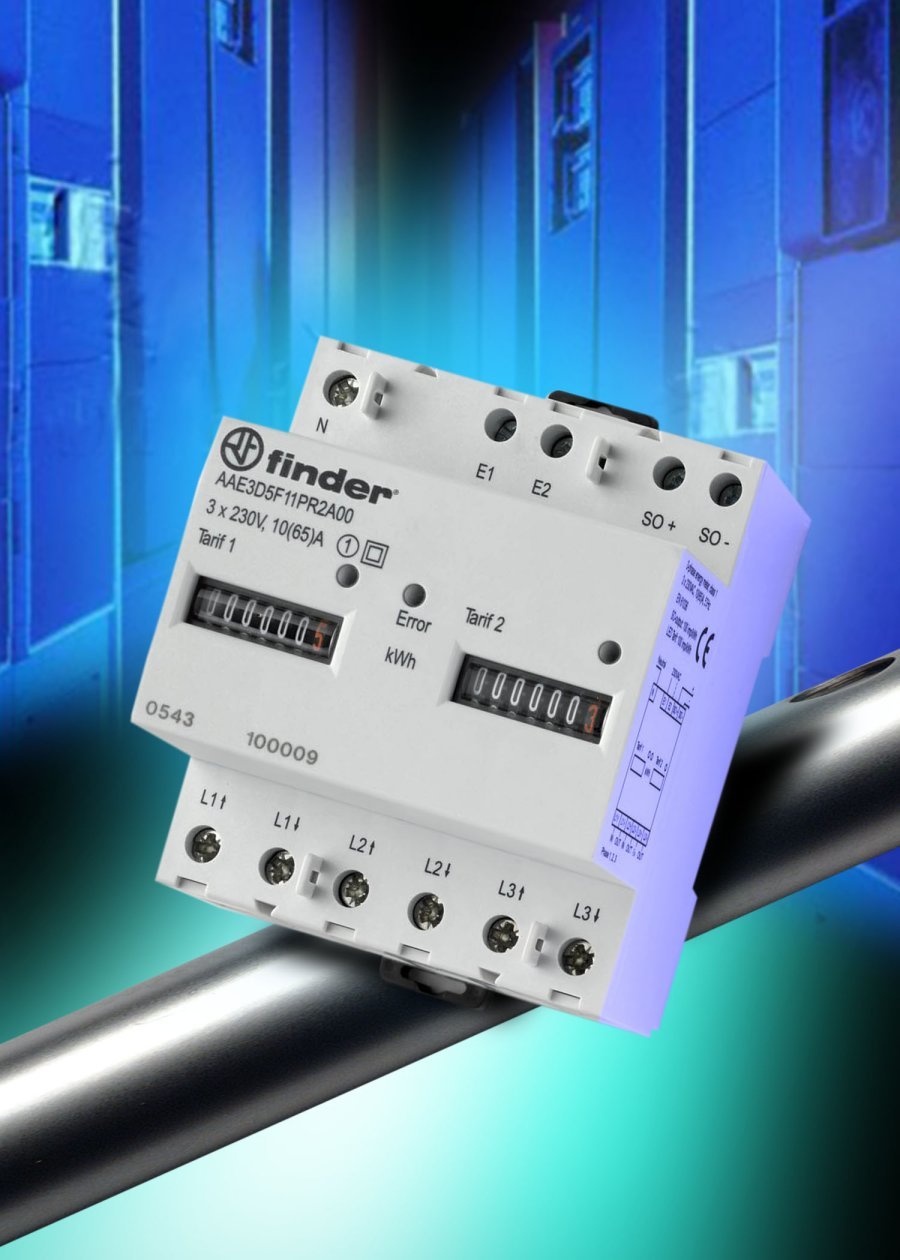

New to the Finder range of energy consumption meters is the three-phase 7E.36 Series, which includes single and dual-tariff kWh models for the measurement, recording and display of power consumption in individual sub-circuits at current levels up to 65A.

The meters are particularly applicable where there is a statutory need for compliance with the EU Measuring Instrument Directive (MID) 2004/22/EG which comes into force in October 2006. The current pressure to reduce energy consumption is also driving the need for accurate monitoring and measurement in specific areas.

The 7E.36 Series meters provide a compact, accurate and easily-installed solution to metering three-phase energy consumption, and are ideally suited for use by manufacturers and installers of machinery and equipment, control systems manufacturers, contractors, site service engineers and designers of building management systems (BMS). Typical areas of use include industrial and commercial installations, test cells, machines, control cabinets and switchboards.

Type 7E.36.8.400.0000 is a single-tariff 3-phase meter, and Type 7E.36.8.400.0002 is a dual-tariff version for use with standard and economy tariff supplies. Both meters are specified for a maximum current rating of 65A, and are housed in a compact 70mm wide enclosure that can be surface mounted or fitted to a 35mm DIN rail, allowing them to be installed in confined spaces or mounted on standard sub distribution boards.

The meters feature 4mm high, 7-digit display(s) including a red decimal digit, to provide an easy-to-read display with a maximum totalising count of 999,999.9kWh. A high resolution pulsed open-collector output to DIN 43864 provides a link to BMS or other types of remote monitoring system. A variable rate pulsed red LED indicator offers a rapid visual indication when abnormal operation is occurring, for example due to phase loss or inversion. Terminal covers are also available to enable a tamper-proof seal to be fitted.

The 7E.36 Series is compliant with EN 62053-21 and prEN 50470 as well as with the EU MID 2004/22/EG, and is certified by PTB (Physikalisch-Technischen Bundesanstalt). Accuracy is specified to Class B and protection to Class II.

Enquiry Form: https://www.epreston.co.uk/contact/

Home Page: https://www.epreston.co.uk/epblog/

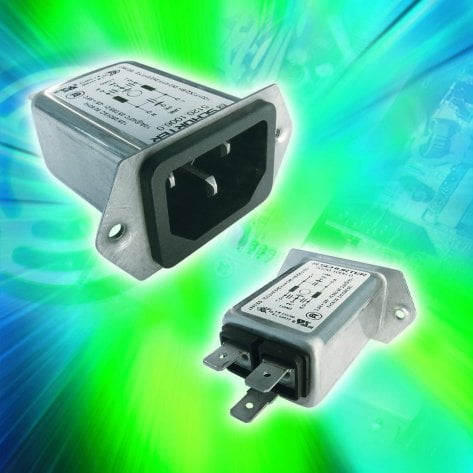

SCHURTER is pleased to announce the new series 5120 Filtered Power Entry Module, added to a list of proven predecessors.  Refined for optimal performance in the smallest package, the new compact filter is particularly suited for single-phase power supplies used in Industrial equipment, Information Technology Equipment and Medical Devices, which are governed by stringent EMC emission and immunity standards.

The series is dimensioned as a 1-stage filter for rated currents 1, 2, 4, 6, 10 and 15A. The unit has an outstanding wide-band absorption in the frequency range from 100kHz to 30 MHz with a leakage current standard <0.5mA and medical <5uA. Mounting options include a front or rear side mounting version for traditional screw and nut mounting, or rivet mounting. A version specifically for rear side mounting features pre-formed, threaded holes for M3 screws. This version eliminates the handling of nuts, reducing costs and automating assembly. The large housing contact area assures optimal shielding.The 5120 fulfill the requirements according to IEC/EN/UL 60950 for use in IT equipment and IEC/EN/UL for use in medical equipment. It is pending certification according to ENEC for rated currents up to 10A and UL/CSA up to 15A at 250 VAC. The filters are also available in a protection class II version according to IEC 61140, and can be equipped with special class X1 capacities for enhanced surge withstand voltage protection. Enquiry Form: https://www.epreston.co.uk/contact/
