SCHURTER Appliance Coupler Type IEC 60320-2-2 Typ J resp. L for Rated Currents up to 20A, in Screw or Snap-In Version for High Current Applications

Schurter Logo.jpg

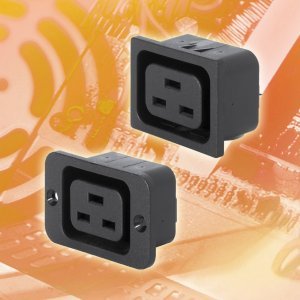

The new series 4797 completes the SCHURTER range of appliance couplers for up to 21 A with a unique variety of versions. The product 4797 consists of two versions for screw or snap-in mounting. The snap-in version was developed in response to customer demand for easier mounting and smaller fit over the screw type, which is especially important for gang mounting. It is available for panel thicknesses ranging from 0.8 up to 3.0 mm. Connection are made with quick connect terminals 6.3 x 0.8 mm, or solder tabs. The body is made from flame resistant thermoplastic UL94-V0 and the copper alloy connector tabs are lead free plated.


The appliance coupler is offered standard as type J according IEC 60320 –2-2 for protection class I applications (L/ N/ PE). A version protection class 2 version with connector type J (L/ N) is available on request. The products are approved for 16A 250 VAC @ 50/60 Hz according ENEC and for 20A 125/250 VAC @ 50/60 Hz according to cURus (USA & Canada). The 4797 outlets are suitable for use in applications according to IEC/EN 60950, providing a convenient solution for distributing power from racks to multiple pieces of equipment. They are also suited for use in outlet strips used for power distribution in household, offices and industrial environments. TYPE 4797.pdf
