Crouzet have released the latest version of the em4 Soft 1.3.00.
What’s New?
- Product label added at the end of datalog file in order to make out csv file source.
- Label Management is now in the Programme Configuration window -> tab "Properties".
- Datalogging function block: additional input to trigger sending + choice in the "archiving a datalog" tab of the Configuring Controller Communication window.
- Status function block: Additional output to warn that datalog memory is full.
- Maximum number of function blocks increased from 1024 to 2048.
- Maximum number of Macro increased from 64 to 127.
- Additional compatibility with Windows10 64-bits operating system.
- New MEM 32-bits function block.
- SFC movement bloc inputs change from 16-bits to 32-bits.
- Changes in the "Controller choice" window.
Available free of charge, em4 Soft can be downloaded from the following link:
http://automation.crouzet.com/downloads/download-your-software-em4-soft/
Enquiry Form: https://www.epreston.co.uk/contact/
Home Page: https://www.epreston.co.uk/epblog/
Enquiry Form: https://www.epreston.co.uk/contact/
Home Page: https://www.epreston.co.uk/epblog/

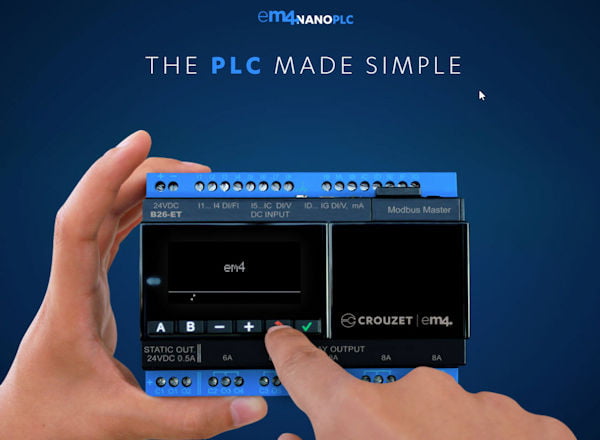

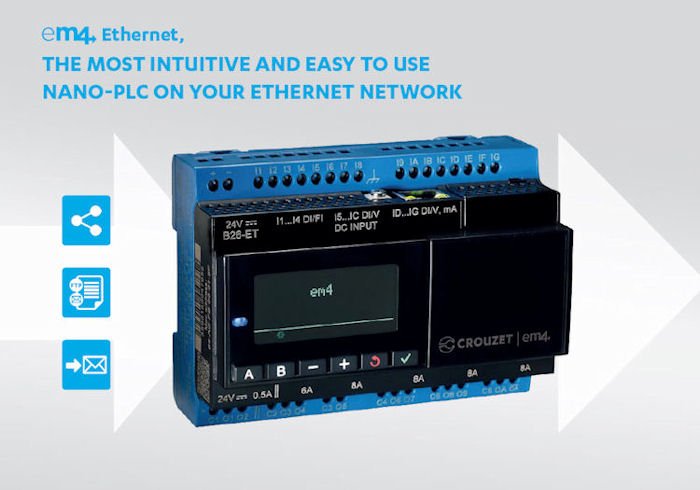

The most intuitive and easy to use Nano-PLC on your Ethernet Network with embedded Ethernet Modbus TCP/IP server.
Key Features
- Save time in designing your application and remote functions using the most intuitive graphical function block language of the market
- Measure accurately your high-end industrial sensors with the embedded configurable analog inputs (including 4-20 mA)
- Integrate easily one of our three high tech designs in your machine
- Adapt your application along the way of its lifecycle thanks to the enhanced controlling performances
Product Details
- 26 I/Os nano-PLC in a compact modular shape
- 24 VDC (-15% +20%) power supply
- Highly visible HMI with 4 lines of 18 characters white on a black backlight, 6 x programmable keys
- 4 configurable digital inputs for encoder (20 kHz), or high speed count (60 kHz)
- 12 digital/analog inputs including 4 configurable (0-10 V, 0-20, 4-20 mA) with high accuracy for sensors
- 2 static PWM outputs allowing controlling analog actuators (controlled valve, controlled pump…) or for external PWM/0-10 V or 4-20 mA converter
- 8 relay outputs (2 x 6 A, 6 x 8 A)
- A large memory for application and remote functions program (~1000 FB)
- Programmable locally with an USB interface
- Optional Interface for Modbus RS485 slave
Accessories
- I/O & specific expansions
- Interfaces & wireless antennas
- HMI & visulalization
- Sensors & Signal converters
- Power-Supply & other accessories
Enquiry Form: https://www.epreston.co.uk/contact/
Home Page: https://www.epreston.co.uk/epblog/
Spotlight on Synchronous Motors made by Crouzet Motors
Developed in the late 60s, the AC synchronous motor ("tin can" type) designed by Crouzet Motors, has become the best-selling motor on the market today, with 2 million motors and geared motors sold in 2014.
Crouzet Motors offers about twenty standard configurations of 1 and 2-direction synchronous and stepper motors that are UL - CE - ROHS certified. All voltages and frequencies are available, allowing for installation into applications worldwide.
In association with 4 models of gearboxes, we offer a big number of different configurations covering the speed range from 150 rpm to as slow as 1 turn per week!
Crouzet motors are characterized by the nominal power from 0.3 to 5W and our gearboxes offer a maximum permissible torque from 0.5 to 5Nm.
Enquiry Form: https://www.epreston.co.uk/contact/
Home Page: https://www.epreston.co.uk/epblog/
Crouzet Switches Limit Switches Detect Valve position in ATEX / IECEX Zones
Compliant in Complex Industrial Processes
- Chemical
- Petrochemical
- Oil services
Features
- Various actuation accessories
- Adjustable angle levers and special heads
- IP67
- Operating temperature range -40°F to 392°F (-40°C to 200°C)
Applications
- Valves and actuators
- Cranes, hoists and gates
- HVAC, generators and safety guards
Enquiry Form: https://www.epreston.co.uk/contact/
Home Page: https://www.epreston.co.uk/epblog/
Crouzet DCmind Brush Motors - Product of the Year 2013
March 2014, the 40,000 technical and scientific readers of the American magazine Medical Design Briefs voted the DCmind Brush range of DC motors Product of the Year 2013. DCMind Brush motors were selected for their outstanding technical merit and practical value.
DCmind Brush motors are incredibly quiet, even at full load, offer excellent efficiency and an exceptional service life, and have an extensive range of gearboxes and accessories. The low noise level (35 dB) of DCmind Brush motors makes them particularly suitable for the medical and biopharmaceutical sectors, as well as laboratories, industry and office equipment and systems. They can also be used in many other high performance applications such as pumps and valves, and also in the railway, military and aeronautical fields.
“The new DCmind Brush motor generation adds a uniquely differentiated premium product to our current offering”, says John Morehead, Crouzet Motors US National Sales Manager. “With its remarkably quiet operation, quality design and manufacturing, it greatly expands our application reach. Additionally, Crouzet’s eco-design strategy has cut the environmental impact of the product’s overall life cycle in half while at the same time improving the product’s
energy efficiencies.”
It is this extraordinary performance that won over the readers of Medical Design Briefs and made DCmind Brush the Product of the Year 2013.
.
Enquiry Form: https://www.epreston.co.uk/contact/
Home Page: https://www.epreston.co.uk/epblog/
The em4 lab is where you can find everything you need to automate your application:
• em4 soft, the most intuitive PLC software on the market
• em4 remote access platform: “em4 web” and “em4 app” to remotely control your em4 from a PC or a mobile device
• Our partners community, with products, tools, and also specific application examples to support your business development and reduce your time to market.
Crouzet Automation has partnered with the best products and service providers, to help you unleash your creativity and reinvent your business.
em4 lab, your turn to create!
.
Enquiry Form: https://www.epreston.co.uk/contact/
Home Page: https://www.epreston.co.uk/epblog/
7 new Chronos 2 Timers, 2 new Level Control Relays and 2 new Phase Control Relays are now available in a more compact DIN Rail package ideal for modular use
Crouzet Control, a brand of Custom Sensors & Technologies (CST), is pleased to announce the availability of 11 redesigned Chronos 2 Timers and Control Relays now available in an improved DIN rail modular housing with the same profile as the Crouzet C-lynx product family.
The 7 new 22.5 mm DIN Rail mounted Chronos 2 Timers (RA2R1, RQR1, RQR6, RU2R1 RU2R3, RU2R4 & RX2R1) replace timers previously offered in a 22.5 mm wide industrial housing. The new 22.5mm DIN rail mounted housing is also similar to the new 17.5 mm Chronos 2 Timers featuring the same terminal block position for perfect panel alignment. The new 22.5 mm timers also feature 2 SPDT relays rated at 8 A / 250 VAC and are just 8 mm higher than the 17.5 mm version with one output relay. New Chronos 2 timers have the same rated supply voltage and electrical specifications as previous industrial housing versions.
ENR and ENRM Level Control Relays have also been redesigned in a new 22.5 mm DIN Rail housing replacing 22.5 mm wide industrial models. A new universal supply voltage of 24 to 240 VAC VDC allows them to replace 8 existing part numbers with similar or improved features per model.
The new 17.5 mm MWS Phase Control Relay featuring an 8 A output rating replaces both the 17.5 mm MWS and 22.5 mm EWS series. The redesigned 22.5 mm EWS2 replaces the existing EWS2 featuring a more compact housing allowing modular installation.
All new Chronos 2 Timers and Control Relays are C-UL-US Listed, CE certified to the IEC Low Voltage Directive and compliant with the RoHS Directive.
.
Enquiry Form: https://www.epreston.co.uk/contact/
Home Page: https://www.epreston.co.uk/epblog/
Crouzet Automation presents a set of energy counting solutions for commercial or industrial buildings, machines and installations. Thanks to its highly visible display, Millenium 3 is the right solution to visualize and centralize multiple energy meters with pulse outputs.
Up to seven pulse inputs, coming from different kinds of metering equipment, (energy, water, calories, etc.) are treated to display monthly consumption. This consumption can be tracked with the memory of the previous month, the total by use and the sum of the total uses.
The M3 Energy Expert solution is a set of macros functions delivered with associated literature. These macro functions can be easily interconnected to build Energy Management applications using M3 Soft V3.0 AC8. They are compatible with all metering products with pulse outputs!
You can adapt the application: change the number/name of uses, adapt the parameters to the metering equipment (100 – 1000 – 50 – 500 Pulse/kWh), use relay outputs for alarms, and add some other automation functions.
.
Enquiry Form: https://www.epreston.co.uk/contact/
Home Page: https://www.epreston.co.uk/epblog/
