Crouzet Millenium EVO Kit

crouzet1

Millenium EVO – The Communicating Logic Controller For All Your Small-Scale Automation Projects.  (Millenium Evo Kit, Controller Xdp24-E + Crouzet Touch Ctp107-E, Cable, Software)

With its 4 ways of communication: Ethernet, Modbus, USB and Bluetooth, you can control and program EVO from a distance, continuously monitor your applications, and interact with other devices.

Control your EVO from a distance and in real time, by accessing its front control face from your PC, laptop, or mobile device. You can change the parameters with the Crouzet Virtual Display app, eliminating the added cost of an HMI. You can also edit and program your EVO even when already installed in your application, without the need to remove it or disconnect a single cable.

Monitor your applications and receive periodic datalogs to measure and record key parameters of your installation, as well as program regular email notifications for updates and alarms. You can also interact with other devices such as HMIs, drives, and other controllers via Modbus and ethernet, as the EVO can act as a slave inside your network.

Millenium EVO is equipped with 16 inputs which include digital, high speed counting, voltmeter, and many analog voltage inputs. Inputs for NTC temperature probes, which allow you to connect probes directly without the need of expensive signal convertors, are also available. Millenium EVO is expandable up to 44 I/Os.

EVO’s programming is made to be simple, with visual programming and a vast range of pre-programmed function blocks to drag and drop into your application. This new version of Crouzet Soft is the most intuitive and easiest to use software, even for first-time users. In addition to the pre-programmed function blocks, it has twice as much memory capacity as standard logic controllers – up to 1000 function blocks. EVO also has ready to configure communication protocols, supports complex data processing with its 32-bit capacity, allows you to combine function block and SFC programming, and helps you to organize your program with custom icons, images and text comments. You can create your own macros or use pre-programmed application blocks.

Give the software a try now, and download it for FREE to start creating, simulating and debugging your program, even before you receive the product!

Need even more? Millenium EVO and Crouzet Software are fully customizable. Crouzet’s Customer Adaptation Center is available to support OEMs with large volume automation projects where an adapted or customized solution will save money and/or enhance functionality. Crouzet can match your specific requirements and provide the solution you need.



Enquiry Form: http://www.epreston.co.uk/contact/

Home Page: http://www.epreston.co.uk/epblog/

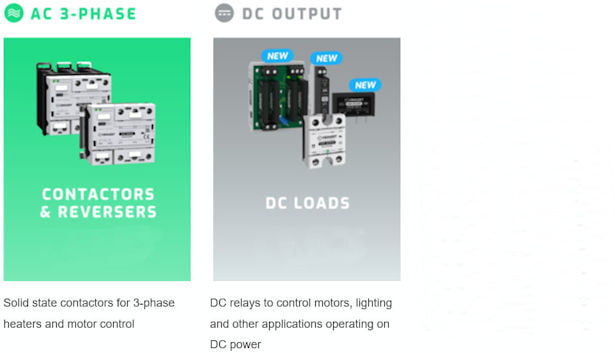

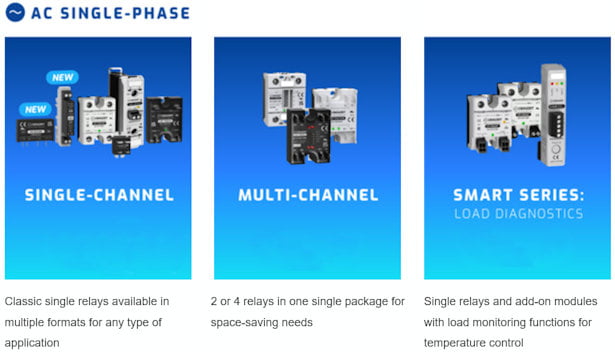

Crouzet (SSR) Solid State Relay Range is Growing

Classic Series
• Single-Phase
• Three-Phase  NEW
• Dual-Channel  NEW
• Panel & DIN-rail mount
• Removable Covers
• AC & DC Voltage

————————————————————————————-

Essential Series
• Cost-Effective Solution
• AC & DC Single-Phase
• Standard Panel Mount (Hockey-Puck)
• Removable Covers
• For simple Applications

————————————————————————————-

Performance Series
• One Product Handles Several Load Types
• Higher Immunity Levels
• Varistor Protection
• Integrated Thermal Pads
• Panel & DIN-Rail Mount

————————————————————————————-

Smart Series
• Panel & DIN-rail mount
• From 35 A to 75 A
• Overvoltage Protection
• IP20
• Load and Current Detection
• SSR Fault Detection

————————————————————————————-

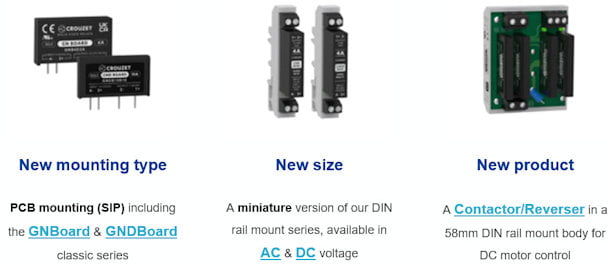

Specialized Series
• Dual-Channel Version  NEW
• Four-Channel Version  NEW
• Low-Profile Version  NEW
• Miniature Version  NEW
• Fast-On Terminals
• Ideal for Limited Space Applications



Enquiry Form: http://www.epreston.co.uk/contact/

Home Page: http://www.epreston.co.uk/epblog/



Crouzet SQ75 DC Brushless Motors Application

crouzet1

Crouzet water proof and dust proof SQ75 Smart Motion is the perfect choice to motorized golf AGVs with its communication capabilities and security features.



Golf players are largely creatures of habit. Each player is following a specific routine in which the range session takes a big part. Daily, thousands of balls are stroked on the Olympics driving range.

Therefore, efficiently collecting, cleaning and returning golf balls to the players on the driving range is a must. On the field, AGVs are taking the lead to run the golf driving range. A robot can mow the grass, collect balls, bring them to the washing machine, recharge the batteries and repeat the loop 24/7 silently.



Watch Product Video



Other Common Applications:
• Access Control
• Wrapping Machines
• Conveyor Belts
• Peristaltic Pumps
• Intralogistics
• Industrial Service Robots
• Agbots
• Defense Robotics



Enquiry Form: http://www.epreston.co.uk/contact/

Home Page: http://www.epreston.co.uk/epblog/

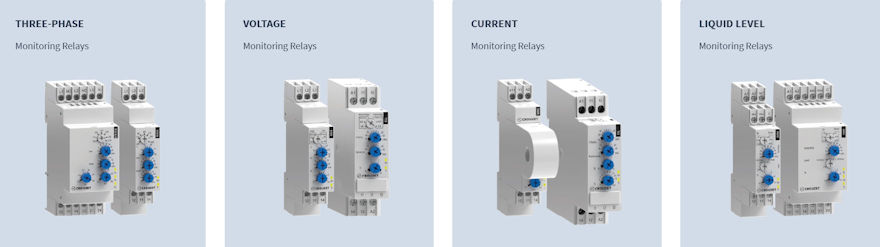

Crouzet HIH Current Monitoring Relay Application

crouzet1

Crouzet HIH Relays monitor the stadium lighting electrical network current in order to alert the maintenance team as soon as a failure occurs.



The Olympic Committee defines strict standards for stadium lighting. The luminosity must be uniform on surfaces during the games to ensure an equity between athletes and an optimal quality of television broadcasting.

To ensure a top quality lighting of the event, the regulation imposes a maximum duration of 20 minutes between the breakdown and the repair of a stadium projector. That is why it is key to equip each stadium and playing field with a system checking the operating condition of the headlamps.





Features:
• Control of AC and DC currents
• Automatic recognition of AC/DC
• Measurement ranges from 2 mA to 10 A
• Choice between over and undercurrent
• True RMS measurement
• Selectable latching (memory) function



Enquiry Form: http://www.epreston.co.uk/contact/

Home Page: http://www.epreston.co.uk/epblog/



Crouzet SYR-LINE Universal Digital Timer that Fits All Your Needs

crouzet1

The Universal Digital Timer offers the same ease of use as analog timers but it is powered with visualization, higher-precision and all the functions you need (up to 138). The new Universal Digital Timer is well suited for a wide range of applications, ranging from heating and cooling in building equipment, Motor or pump control, industrial processes and lighting systems applications and many more.

SYR-LINE Universal Digital Timer‘s high-contrast led screen enables you to monitor the status of the timer. You can see the current time, the function and timing configurations, and know if you are receiving an input signal or if the relay output is activated.

With this Universal Digital Timer, its monitoring is made easy for you by adding

• Large, easy to read digits in 17.5mm for a clear and easy view of your timing status,
• Full scrolling words for best reading in such a slim body,
• Precise timing setting,

Large, manual dial to make configuration easy and intuitive using just your hands, even wearing gloves

Its wide time range, its universal mounting connection and the ability to accept universal voltage input gives the Universal Digital Timer a universal flexibility. It can indeed be programmed from 0.1 second to a 100-day delay and be used with any power supply available, since it works with voltages from 12 to 240V either DC or AC.  The Universal Digital Timer includes ALL the functions you need to run your applications, from the classics like on-delay «A» or off-delay «C», to special ones like repeat cycle «L». It also allows you to adapt them and get up to 138 real operating functions in one single product. This universal flexibility makes it the only ultra multi-function timer.

The new Universal Digital Timer has been built to be simple to use. You can program it in your hands without any power supply. You can get it ready in just a few seconds. Using the Basic parameters, you can configure your timer in only four steps and get it ready in just a few seconds. With the Advanced mode, you can configure all the optional additional parameters. Among those, the Universal Digital Timer offers two great features for you to set the limits. You can either limit user access by setting a password and defining user rights (full access, change time only, view only) or define time limit setting by allowing users to change time only between lower and upper limits.



Enquiry Form: http://www.epreston.co.uk/contact/

Home Page: http://www.epreston.co.uk/epblog/

Crouzet ATEX Pneumatics Application

crouzet1

ATEX Pneumatic components is a serious option to consider

The original design of Darth Vader’s armor didn’t originally include a helmet. But today Darth Vader’s helmet, combining a full-face breathing mask with a samurai helmet, is one of the most iconic designs of space fantasy cinema. Breathing under stress is a critical feature of the helmet.

“The respirator function is much more than a scuba tank regulator” observed a DesignLab quality engineer. We recommend highly reliable ATEX components to control the respirator valves in explosive environments.



Enquiry Form: http://www.epreston.co.uk/contact/

Home Page: http://www.epreston.co.uk/epblog/

Crouzet Manually Operated Switches Application

crouzet1

Crouzet offers a full range of Manually Operated Switches

A typical lightsaber is depicted as a luminescent blade of magnetically contained plasma about 3 feet (0.91 m) in length. In the Star Wars universe, the lightsaber is the signature weapon of the Jedi Order and their dark side counterpart, the Sith Order.

“Safety is definitely the key feature of a lightsaber”, noticed one of the Electrical Protection specialists at Crouzet DesignLab. Indeed, securely switching on/off such a powerful weapon is a must have for every Jedi.



Enquiry Form: http://www.epreston.co.uk/contact/

Home Page: http://www.epreston.co.uk/epblog/

Crouzet SQ57 DC Brushless Motors With Canopen Application

crouzet1

Brushless SQ57 series with CanOpen is the experts’ choice to motorize Artoo-Detoo

R2-D2 stands for Second Generation Robotic Droid Series-2, a fictional astromech droid in Star Wars. He has appeared in ten of the eleven Star Wars films to date. Upon Crouzet Designlab experts, “Motorizing R2-D2 is kind of challenging”.

The robot runs in extremely harsh environment and requires low energy consumption to extend its autonomy. Moreover, low noise and communication capabilities are mandatory to avoid droid troubles during tough situations.
