Bulgin Industry Applications for Security & Surveillance (Transport & Infastructure)

With ambient & environmental conditions such as water, moisture & extreme temperatures posing a constant threat to transport & infrastructure applications, reliable & robust solutions are vitally important in this sector.

From outdoor lighting & industrial meters to HVAC systems & surveillance cameras, rest assured that our industry leading solutions are built for maximum reliability & performance to support the challenging needs of various indoor, outdoor & industrial applications.

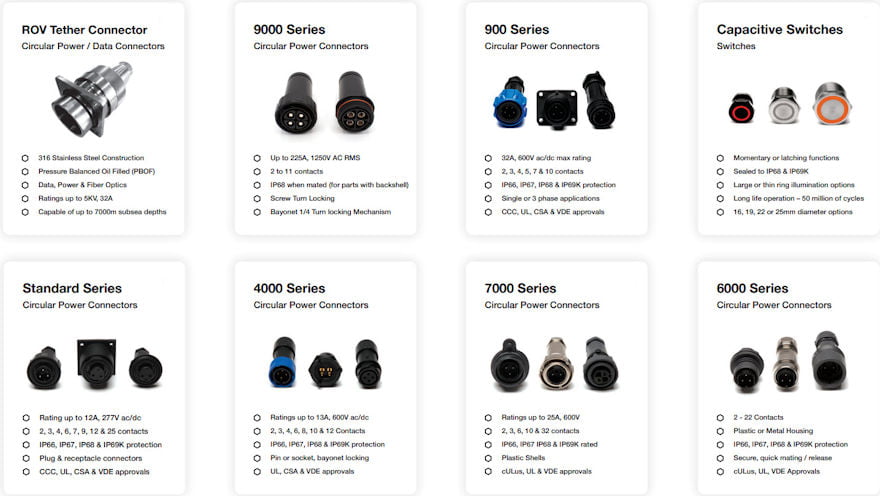

With applications such as surveillance cameras constantly operating in some of the world’s most challenging outdoor environments, reliable data & power transmissions are vital for ensuring that they can operate 24/7 in harsh ambient conditions. To resolve this issue, we have created a wide variety of standardised rugged, lightweight & sealed connectivity solutions including field installable connectors & overmolded cable assemblies that can also be customised for your specific design & development needs.

Whether you require secure & reliable connectors for camera systems or robust anti vandal switches for door entry keypads, we are sure to have the right solution for your security application. We thrive on providing secure & reliable solutions that prevent downtime & minimise maintenance work for
applications where security & surveillance are a priority to your operations.

Applications:
• Traffic Cameras
• ANPR Cameras & Sensors
• Parking Control Camera
• Security Door Switch
• Door Entry Keypads
• Aerial Surveillance & Mapping
• Security Video Monitoring
• Portable Alarm Systems
• Unmanned Surface Vehicle
• CCTV Cameras



Enquiry Form: http://www.epreston.co.uk/contact/

Home Page: http://www.epreston.co.uk/epblog/

Schurter Types 4761 / 4762 Waterproof Push/Pull Appliance Coupler

Schurter Logo1.jpg

Schurter presents the new waterproof IEC connector consisting of the appliance inlet type 4761 and the rewireable cord connector type 4762. With its high protection class IP 67 or IP 69K connected or unconnected with cover, this appliance coupler is perfect for supplying power to appliances used in harsh environments such as industrial, marine, laboratories or any type of outdoor appliances.

The Push/Pull locking system provides a strong reliable connection, yet at the same time ensures a break-away cable in the event of overdue stress. The blue shape and color of the pull-out mechanism indicates the pull-out direction. A clear catch sound is heard upon the seated connection. The connector style is similar to the international standards of IEC and UL/CSA 60320, but is distinguished by a special arrangement of the contacts, so as not to interchange with conventional power cords. This ensures the maximum power applied, IP protection and the cord retention. The connector can be temporarily submerged in water and can be cleaned with high-pressure hot water cleaners. Both components are very easy to terminate. The inlet 4761 is available with solder or quick connect terminals. The connector is equipped with conventional screw terminals, as commonly seen in rewireable connector designs. Thus, no special tools for wire assembly are necessary.

The appliance couplers are available in black and white. The dual components, appliance inlet and cord connector, can be ordered as complete sets, which simplifies the ordering processes and customer logistics. The inlet and connector are also available as individual components for separate inventorying. Accessory covers are available for both plug parts, providing a waterproof protection IP 67 in plugged state and IP 69K in an unplugged state. These protective covers also offer protection against pollutants, which can potentially contaminate the contacts.

The approvals of these connectors according to IEC/UL 60320 simplify the process for the equipment manufacturer to obtain approval of their appliances, because many equipment standards with respect to the power supply refers to these component standard.

Technical Specifications:
– Standards: IEC 60320-1, UL 60320-1, CSA C22.2 No 60320-1
– Approvals: ENEC, UL/CSA
– Ratings UL/CSA 15 A / 250 VAC, 60 Hz
– Ratings UL/CSA 15 A / 250 VAC, 60 Hz
– Maximum operating temperature: +120 °C
– Wire size connector: 0.75 – 1.0 mm2, 18 AWG – 14 AWG (0.82 – 2.08 mm2)
– IP protection degree IP 67 and IP 69K
